Tracked Boom Lift

Max. Operating Height

24m

Max. Platform Height

10m~22m

Lift Capacity

200kg

Designed for Complex, Confined, and High-Access Jobs

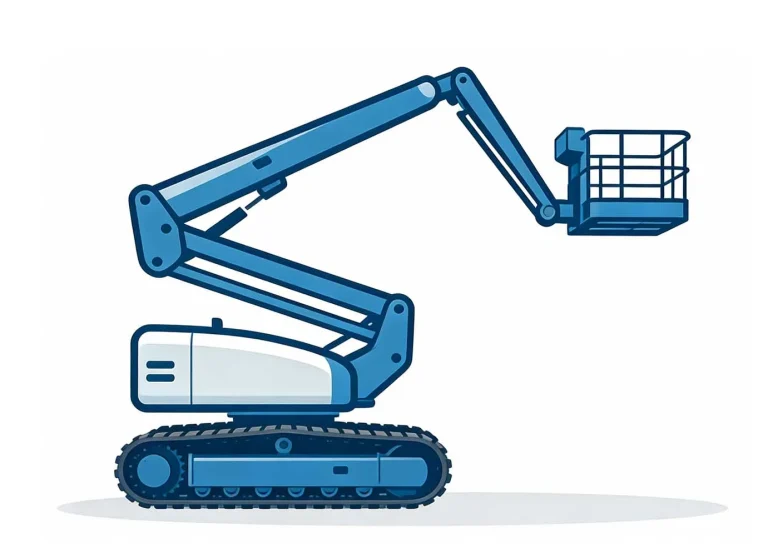

Lemax Crawler Spider Boom Lift features an articulated boom and compact design, allowing easy access through standard doorways and narrow spaces.

With crawler tracks for stability and multiple power options—diesel, gasoline, battery, electric, or dual power—it’s a versatile solution for demanding job sites.

Features & Technology

Customizable Load Capacity
Standard 360° Rotation
Emergency Stop Button (E-Stop)
Manual Emergency Lowering Valve

Hydraulic Automatic Self-Leveling Outriggers
Integrated Tow Bar with Braking System
Self-Propelled
Standard AC (Mains) Power Input

Horizontal Tilt / Platform Level Sensor
Operating Horn and Indicator Lights
High-Strength T700 Steel Jib/Boom
Weatherproof / Rainproof Control Box

Spec Sheet

Model	LT8S	LT10S	LT12S	LT14S	LT16S
Max Working Height	10 m	12 m	14 m	15.7 m	17.7 m
Max Platform Height	8 m	10 m	12 m	13.7 m	15.7 m
Max Working Radius	5 m	5.5 m	6.2 m	7.6 m	8.1 m
Platform Dimension (L × W × H)	0.9 × 0.7 × 1.1 m	0.9 × 0.7 × 1.1 m	0.9 × 0.7 × 1.1 m	1.1 × 0.7 × 1.1 m	1.1 × 0.7 × 1.1 m
Machine Dimension (L × W × H)	4.7 × 0.75 × 1.9 m	5.0 × 0.75 × 1.9 m	5.3 × 0.75 × 1.9 m	4.8 × 0.85 × 2.0 m	5.3 × 0.85 × 2.0 m
Machine Weight	1720 kg	1790 kg	1880 kg	1900 kg	2200 kg
Load Capacity	200 kg
Driving Speed	1.5 km/h	1.5 km/h	1.5 km/h	3 km/h	3 km/h
Driving Gradeability	25%
Pump Motor	4.5 kW
