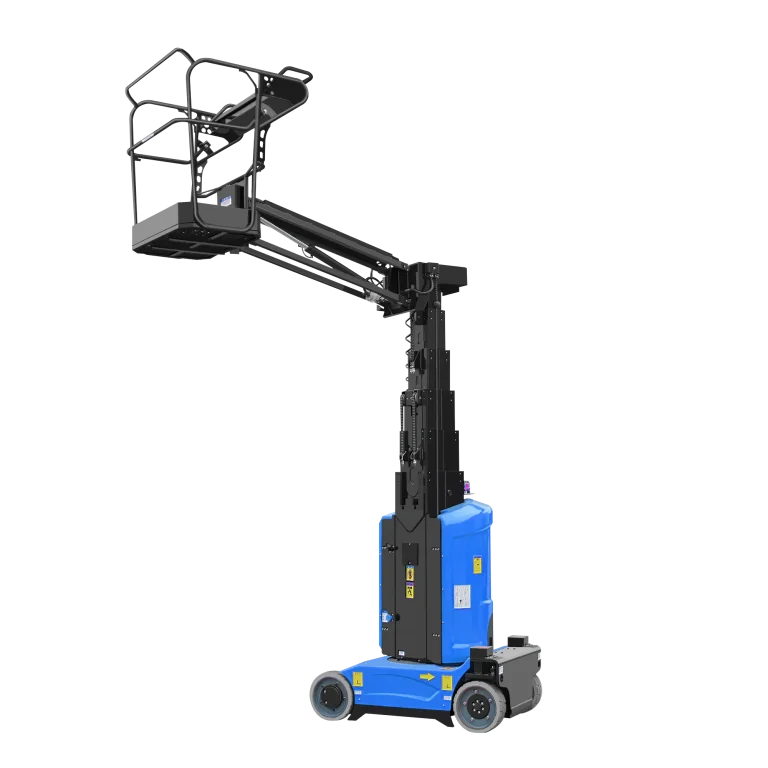

Vertical Telescopic Mast Lift With Jib
Specifically for Up-and-Over Access in Tight Spaces
The vertical telescopic mast boom lift with jib is designed to reach up and over obstacles in confined areas where traditional articulating boom lifts cannot operate efficiently. Its ultra-narrow design makes it ideal for compact spaces requiring precise up-and-over access.
Suitable for both indoor and outdoor applications, this vertical mast boom lift features non-marking tires and zero tailswing for excellent maneuverability and easy operation. Built for efficiency, it helps you complete maintenance and access tasks quickly, safely, and with confidence.
Features & Technology
• Proportional Joystick Controls
• Self-Locking Gates
• Drivable At Full Height
• Non-Marking Tires
• Two-Wheel Drive
• Two-Wheel Steering
• Automatic Braking System
• Emergency Descent System
• Tubing Explosion-Proof System
• Fault Diagnosis System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Charging Protection System
• Flashing Beacon
• Automatic Pothole Protection
• Drive Enable
• Charging Indicator
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Platform Load Sense System
• Emergency Stop Button
Spec Sheet
| Model | AMWP11.2-8100 |
|---|---|
| Max. Working Height | 11.2 m |
| Max. Platform Height | 9.2 m |
| Max. Horizontal Reach | 3 m |
| Up and Over Height | 7.89 m |
| Guardrail Height | 1.1 m |
| Overall Length | 2.53 m |
| Overall Width | 1.0 m |
| Overall Height (Stowed) | 1.99 m |
| Platform Dimension | 0.62 × 0.87 m |
| Ground Clearance (Stowed) | 70 mm |
| Ground Clearance (Raised) | 19 mm |
| Wheelbase | 1.22 m |
| Loading Capacity | 200 kg |
| Occupants | 2 |
| Turning Radius (Inside/Outside) | 0.23 / 1.65 m |
| Turret Rotation | 345° |
| Jib Movement | 130° |
| Travel Speed (Stowed) | 4.5 km/h |
| Travel Speed (Raised) | 0.5 km/h |
| Up/Down Speed | 42 / 38 s |
| Max. Working Slope | X-2.5° / Y-2.5° |
| Tires | Ø381 × 127 mm |
| Driving Motor | 24 V / 1.5 kW |
| Lifting Motor | 24 V / 3 kW |
| Battery | 24 V / 240 Ah |
| Charger | 24 V / 30 A |
| Weight | 2950 kg |
